Complement the Tac-Eye 2.0 user that prefers a traditional display over a light, secure head-up display (HUD).

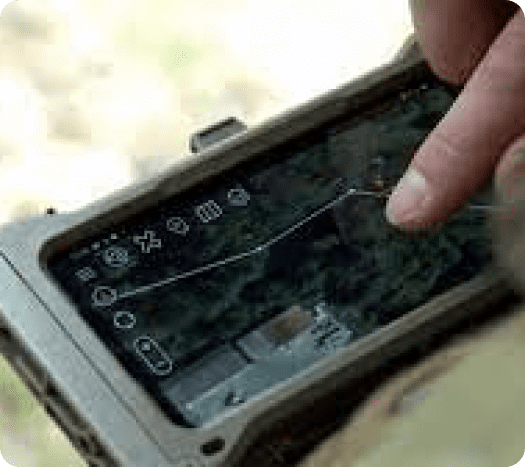

The Rugged Mobile Monitor (RMM) is a wearable, low SWaP direct view display for non-standard environments. The device augments the Six15 product line to complement the Tac-Eye 2.0 for users that prefer a traditional display over a light, secure head-up display.
Simple controls, enhanced user capabilities.
The Rugged Mobile Monitor (RMM) is a wearable, low SWaP direct view display for non-standard environments. The device augments the Six15 product line as a complement to the Tac-Eye 2.0 for Users that prefer a traditional display over a light secure head mounted display (HMD). Its high-brightness 5” display provides imagery from composite sensor feeds.
Mounted locally or inbound from remote sources, common sensor sources include unmanned vehicles and perimeter security systems. Simple controls allow the operator to quickly adjust the display to accommodate environmental conditions with little to no training. The RMM can be mounted to a Juggernaut chest plate, MOLLE/PALS systems, or Velcro.
Product Technical Specifications:
Download the Rugged Mobile Monitor Data Sheet-
Display TypeTFT LCD 640 x 480 Pixels
-
Brightness500 cd/m²
-
Contrast Ratio600:1
-
Size (W x H x D)6.6” x 4.3” x 1”
-
Weight357g
-
Video InputsNTSC, RS-170, PAL
-
Power Input5V ± 10 %
-
Power Consumption2.5 W
-
Environmental StandardMIL-STD-810G
